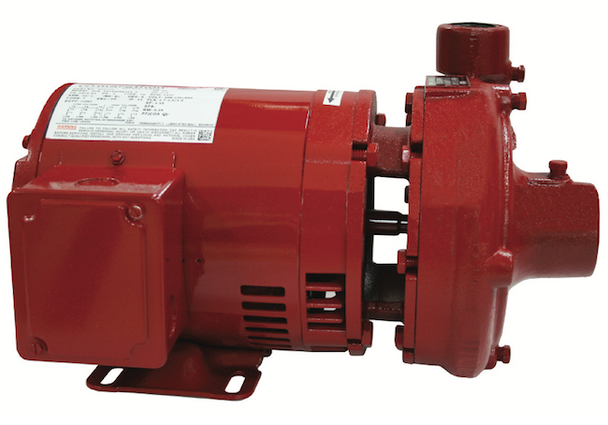

168319LF Bell & Gossett e3512T Series e-1535 Pump 5HP, 3450 RPM three phase 208-230/460 volt pump designed for heavy duty requirements in cooling tower, refrigeration, industrial and general service applications. This back-pullout pump offers ease of service in a close-coupled design. This low maintenance pump can be mounted vertically or horizontally to provide maximum flexibility. Ball bearing design and standard internally flushed mechanical seal provide long, dependable service. Foot-mounted, end-suction, close-coupled pump available in 3/4” through 1-1/2” sizes. Motor sizes 1/4 to 5 HP. Available in bronze-fitted and all bronze construction with flows to 240 GPM at 115 feet. Offered in 29 Stock part numbers as well as configurations thru e-1535 BTO.
|
Manufacturer:
|
Bell & Gossett
|
|
Series:
|
e-1535
|
|
Part Number:
|
168319LF
|
|
Model:
|
e3512T
|
|
Connection Size:
|
Suction: 1-1/2, Discharge: 1-1/4
|
|
Construction:
|
Cast Iron Bronze Fitted
|
|
Pump Type:
|
Centrifugal
|
|
Mounting Type:
|
Foot Mounted Vertically or Horizontally
|
|
Horsepower:
|
5 HP
|
|
Motor RPM:
|
3450 RPM
|
|
Motor Phase:
|
Three Phase
|
|
Voltage:
|
208-230/460
|
|
Max Working Temperature:
|
250*F
|
|
Working Pressure:
|
175 psi (12 bar)
|
|
Cycle:
|
60
|
