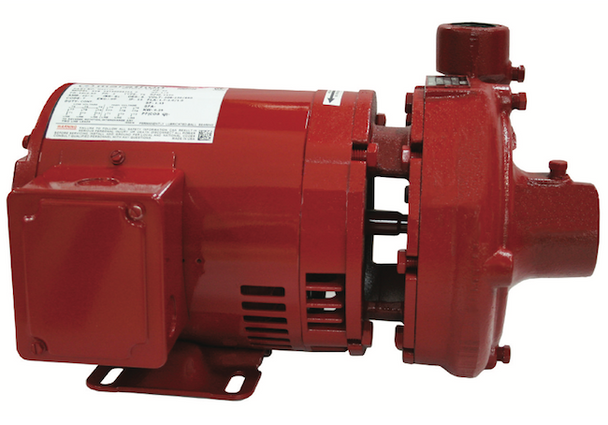

168327LF Bell & Gossett e3517S Series e-1535 Pump 2HP, 3450 RPM single phase pump designed for heavy duty requirements in cooling tower, refrigeration, industrial and general service applications. This back-pullout pump offers ease of service in a close-coupled design. This low maintenance pump can be mounted vertically or horizontally to provide maximum flexibility. Ball bearing design and standard internally flushed mechanical seal provide long, dependable service. Foot-mounted, end-suction, close-coupled pump available in 3/4” through 1-1/2” sizes. Motor sizes 1/4 to 5 HP. Available in bronze-fitted and all bronze construction with flows to 240 GPM at 115 feet. Offered in 29 Stock part numbers as well as configurations thru e-1535 BTO.
|
MANUFACTURER:
|
Bell & Gossett
|
|
SERIES:
|
e-1535
|
|
PART NUMBER:
|
168327LF
|
|
MODEL:
|
e3517S
|
|
CONNECTION SIZE:
|
Suction: 1-1/4, Discharge: 3/4
|
|
CONSTRUCTION:
|
Cast Iron Bronze Fitted
|
|
PUMP TYPE:
|
Centrifugal
|
|
MOUNTING TYPE:
|
Foot Mounted Vertically or Horizontally
|
|
HORSEPOWER:
|
2 HP
|
|
MOTOR RPM:
|
3450 RPM
|
|
MOTOR PHASE:
|
Single Phase
|
|
VOLTAGE:
|
115/230
|
|
MAX WORKING TEMPERATURE:
|
250*F
|
|
WORKING PRESSURE:
|
175 psi (12 bar)
|
|
CYCLE:
|
60
|
