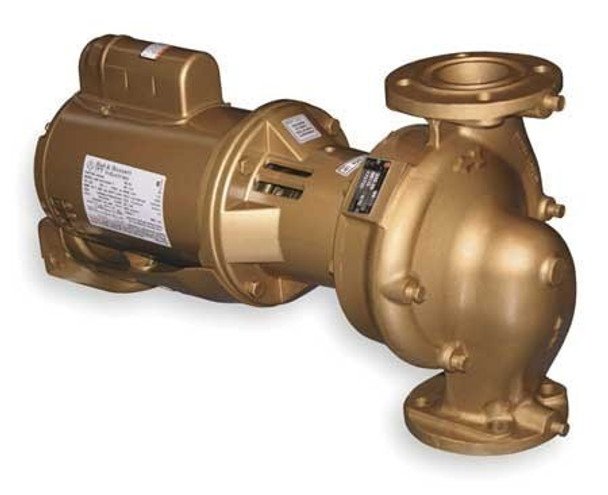

Bell & Gossett 1EF076LF Be614S Bronze Series e-60 Pump 1 HP

1EF076LF Bell & Gossett Be614S Bronze Series e-60 Pump 1 HP 115/230v motor, All Bronze Construction. Pump Size 1.5×1.5×6.25, 6.250″ Impeller Diameter. The Bell & Gossett Series e-60 is a three-piece centrifugal in-line pump designed for HVAC, potable water, and other clean water applications in the residential and commercial markets. Series e-60 offers great value with class-leading hydraulic efficiency, long pump life, and easy serviceability. Quiet operation, a robust mechanical seal, and maintenance-free bearings make Series e-60 a truly worry-free, install-and-forget solution.

Ease of Selection: Series e-60 pumps come in 9 sizes, with 144 available stock models and many more Built-to-Order configurations. Both stock and BTO pumps are easily selectable using B&G pump selection and e-order software.

Simple, Versatile Installation: The Series e-60 mounts directly to system piping by its bolted flange connections, offering design flexibility and saving valuable floor space. As a replacement pump, the Series e-60 is a perfect drop-in solution, as flange- to-flange and intake/suction dimensions are identical to equivalent legacy Series 60 models — and even some competitors’ pumps.

Robust Design: The Series e-60 employs high quality components for smooth performance and long pump life. The pumps permanently lubricated rotating bearings come fully enclosed in Polyrex grease for true maintenance-free operation. The unitized mechanical seal offers better performance and longer life.

Ease of Service: Three-piece design allows for minimally invasive service. The motor, coupler, seal and impeller can all be repaired or replaced without removing the pump from its piping. The one-piece seal simplifies seal replacement, eliminating the clumsy task of assembling difficult seal components to the shaft.

Series e-60 ECM:

• Variable Speeds from 300-1725 RPM
• On-board dial for manual speed control
• 0-10V DC signal input for automatic control
• Quieter operation than standard induction motors • ECM up to 82% efficient at constant speed
