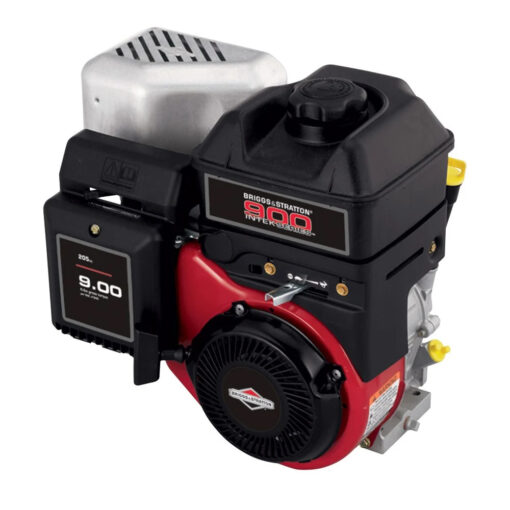

Briggs Stratton 12S402-0022-F8 horizontal 9.00 Gross Torque engine is 205cc and has a 3/4″ x 1-29/64″ crankshaft with a 3/16″ keyway. Briggs Stratton 9.00 Gross Torque engines offer easy starting, long life, and cool operation thanks to durable components like float carburetors, Dual-Clean air filters and OHV design. Buyer protection package provides two-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Briggs Stratton 12S402-0022-F8 Horizontal Engine Key Specifications
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 12S402-0022-F8 |
| WARRANTY | 2 Year Consumer / 1 Year Commercial |
| SHIPPING WEIGHT | 40 |
| DISPLACEMENT | 205cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 1-29/64″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 1-29/64″ |
| CRANKSHAFT END TAPPED SIZE | 3/8 – 24 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Flange Mount Plain with Oil Seal & Pilot |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Ultra Low Mount Panel, Dual Element |
| FUEL TANK | Yes |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| MAX RPM | 3400 |
| CHARGING SYSTEM | None |
| BOLT CIRCLE | 3-5/8″ |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
