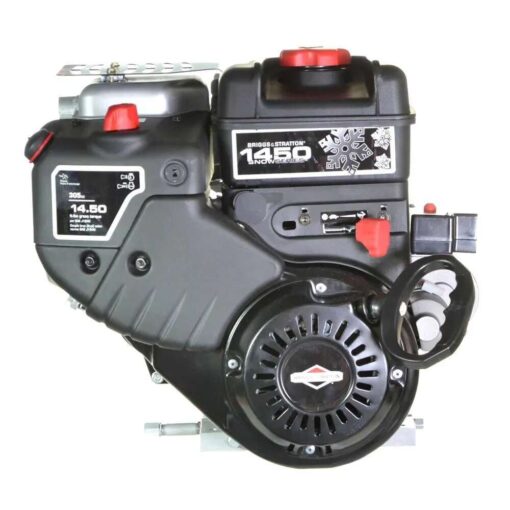

Briggs Stratton 20M312-3007-F1 Professional Series Horizontal Snow Engine, 305cc, 14.5 Gross Torque, 1-inch x 3-21/32-inch Crankshaft, 1/4-inch Keyway, Tapped 7/16-20, Recoil Start.
Briggs Stratton 20M312-3007-F1 Snow Engine Key Specifications
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 20M312-3007-F1 |
| WARRANTY | 2 Year Consumer / 1 Year Commercial |
| SHIPPING WEIGHT | 62 |
| DISPLACEMENT | 305cc |
| STARTER TYPE | Recoil w/ Mit Grip |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIMENSIONS | 1″ x 3-21/32″ |
| CRANKSHAFT LENGTH | 3-21/32″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Flange Mount Plain with Oil Seal & Pilot |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Aluminum Alloy |
| FUEL TANK | Yes |
| FUEL PUMP | No |
| OIL CAPACITY | 28 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| MAX RPM | 3600 |
| CHARGING SYSTEM | None |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
