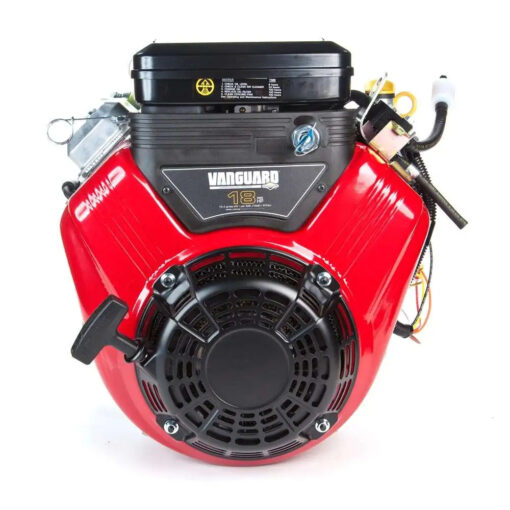

Briggs Stratton 356447-0050-G1 horizontal Vanguard engine is 570cc and puts out 18.0 HP (maximum horsepower). This Vanguard V-twin has a 1″ x 3-1/4″ threaded crankshaft and comes equipped with an electric starter with recoil back-up, 16-amp charging system, fuel pump and oil filter. Muffler and fuel tank are not included. Briggs Stratton Vanguard engines are designed with advanced technologies and integrated components to be both compact and powerful enough to take on the most demanding commercial jobs. Common applications include power packs and generators, commercial mowers and golf and turf equipment. Buyer protection package provides three-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Key Specifications
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 356447-0050-G1 |
| REPLACES MODELS | 356447-3077-G1, 356447-0077-E1, 356447-0077-G1, 356447-0189-G1, 356447-0189-E1, 356447-0171-G1, 356447-0171-E1, 350447-1377-E1, 350447-1110-E1, 350447-1080-E1, 350447-1080-A1, 350447-1077-E1, 350447-1077-A2, 350447-1077-A1, 350447-0080-01, 350447-0077-01, 350447-1080, 350442-1172-A1, 294447-0325-01 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 94 |
| DISPLACEMENT | 570cc |
| STARTER TYPE | Electric with Recoil Backup |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Threaded |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″-14 x 3-21/32″ |
| CRANKSHAFT DIAMETER | 1″-14 |
| CRANKSHAFT LENGTH | 3-21/32″ |
| CRANKSHAFT END TAPPED SIZE | N/A |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element |
| FUEL TANK | No |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 48 |
| LOW OIL ALERT | Yes |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual and Remote |
| MAX RPM | 3600 |
| CHARGING SYSTEM | 16 |
| BOLT CIRCLE | 5, 6-1/2, 7-3/4 |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
