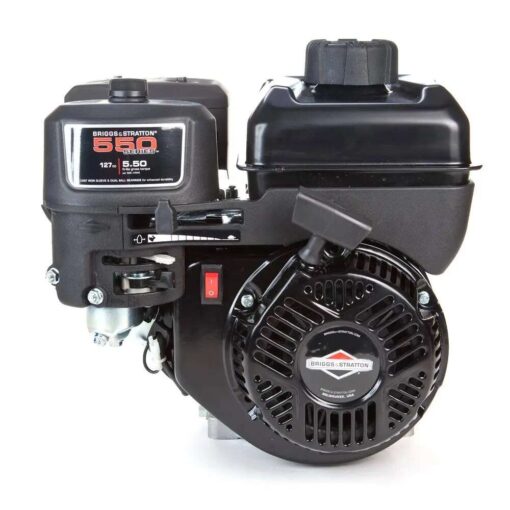

Briggs Stratton 83132-1035-F1 horizontal 550 Series engine is 127cc and puts out 5.50 gross torque. This OHV utility engine has a 3/4″ x 2-27/64″ crankshaft. It has a recoil start and is equipped with a muffler. Briggs Stratton 550 Series general purpose engines are designed to efficiently deliver the power needed for outdoor work. Common applications include tillers, pressure washers, pumps and generators. Buyer protection package provides a two-year limited consumer warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Briggs Stratton 83132-1035-F1 Horizontal Engine Key Specifications
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 83132-1035-F1 |
| WARRANTY | 2 Year Consumer / 1 Year Commercial |
| SHIPPING WEIGHT | 35 |
| DISPLACEMENT | 127cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2-27/64″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2-27/64″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element |
| FUEL TANK | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| MAX RPM | 3600 |
| CHARGING SYSTEM | None |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
