Briggs Stratton 950 Series Horizontal OHV Engine

Name: Briggs Stratton 950 Series Horizontal OHV Engine
SKU: 81587166
Availability: InStock

$221.00

Add to wishlist

SKU: 81587166 Category: Horizontal Engines

Description

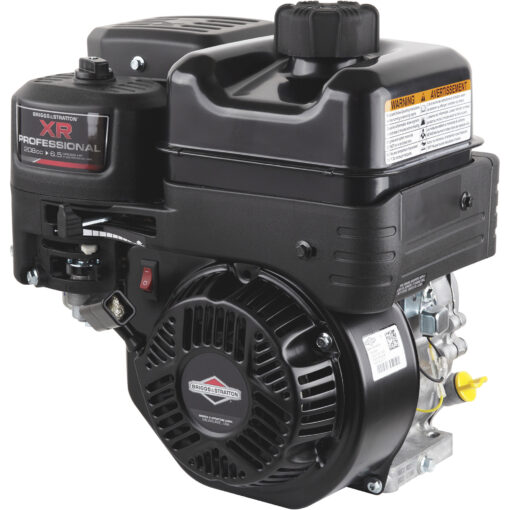

Briggs Stratton 950 Series Horizontal OHV Engine 208cc 3/4in x 2 27/64in Shaft Model 130G320022 F1

Product Summary

This Briggs Stratton 950 Series Horizontal OHV Engine produces 9.50 ft/lbs. of gross torque to get the job done. Standard shaft is designed for general use. Compact OHV design runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy. High-flow cylinder head produces 20% more power than conventional engines, increases fuel efficiency and significantly reduces emissions. This engine has fast fuel delivery for one-pull starts and smooth operation.n

Key Specs

Item#	42548
Brand	Briggs Stratton
Manufacturer’s Warranty	2 years consumer use / 1 year commercial use
Ship Weight	34.2 lbs
Engine Displacement	208 cc
Engine Type	950 Series OHV
Start Type	Recoil
Shaft Diameter	3/4 in
Shaft Length	2.42 in
Shaft Output	Horizontal
Shaft Keyway	0.18 in
Shaft End Tapped (Diameter (in.)/Threads per inch)	5/16-24 tapped
Shaft Rotation (From PTO Shaft Side)	Counterclockwise
Crankshaft	Horizontal
PTO Height	4.17 in
Bearing Type	Dual ball
Cylinders (qty.)	1
Cylinder Bore	Aluminum w/cast iron sleeve
Cooling System	Air cooled
Bore	2.75 in
Stroke	2.12 in

Air Cleaner Type	Dual element
Fuel Tank	Yes
Fuel Type	Gasoline
Fuel Tank Capacity	3.25 qt
Fuel Filter	Yes
Oil Capacity	0.06 qt
Low Oil Alert	Yes
Low Oil Shutdown	No
Lubrication System	Splash
Ignition System	Electronic
Governor System	Mechanical
Carburetor	Float
Throttle Control	Manual, remote, adjustable
Choke Control	Manual
Max. RPM	3,300
Muffler Included	Yes
Auto Compression Release	Yes
CARB Approval	Yes
Dimensions L x W x H (in.)	10.25 x 14.4 x 14.81 in
