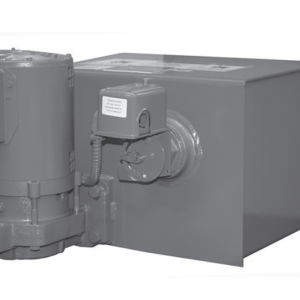

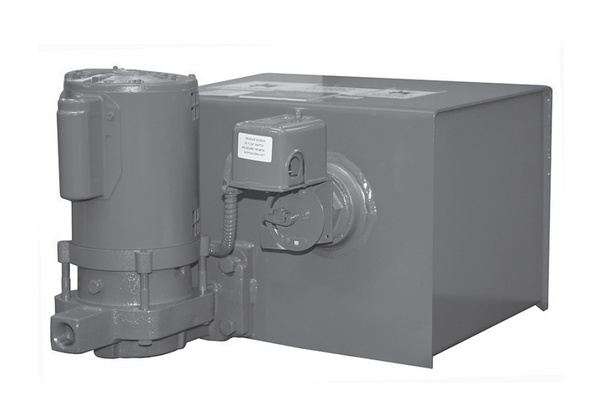

160011 Hoffman Watchman WCS-8-20B Steam Condensate Pump. The WCS-8-20B has a 3/4″ connection and a 1/3 HP, 3450 RPM, 115v single phase motor. The WCS-80-20B is a simplex unit, with a 9 gallon tank, capable of pumping 12 gallons per minute at 20 psi and 8,000 EDR.
The Hoffman condensate pump units feature cast iron receivers that are warranted for 20 years from date of shipment against failure due to corrosion. They are supplied in 6, 9, 14 and 23 gallon receiver sizes with low inlet heights for ease of installation.
Hoffman Watchman pumps are the reliable and proven design Watchman Close Coupled Centrifugal Pumps with bronze impeller, bronze wearing ring, carbon/ceramic/mechanical seal rated to 250 degree, and cast iron housing. Motors are vertically mounted drip proof ball bearing design with built in overload protection and stainless steel shafts. Pumps are controlled by heavy duty, double pole, externally adjustable float switches. Duplex units are provided with mechanical alternators as standard for two pump control. Units are normally stocked.
