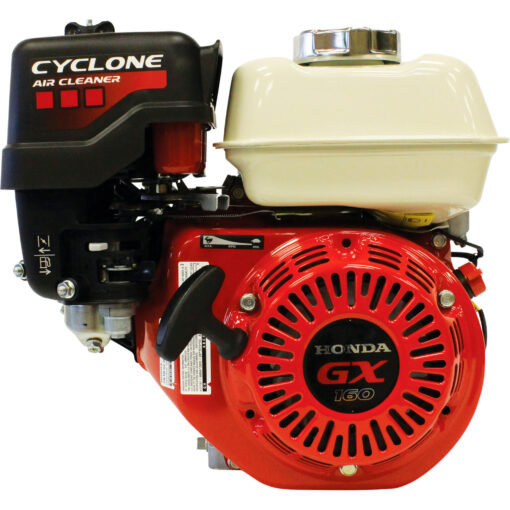

Honda Horizontal OHV Engine 163cc GX Series Model GX160UT2QC9
Product Summary
The Honda 163cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet ruing. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders.n
| Item# | 60597 |
| Brand | Honda Engines |
| Manufacturer’s Warranty | 3 year limited warranty |
| Ship Weight | 40.0 lbs |
| Engine Displacement | 163 cc |
| Engine Type | GX Series OHV commercial-duty |
| Net Power Output | 4.8 HP |
| Start Type | Recoil |
| Shaft Diameter | 3/4 in |
| Shaft Length | 2.43 in |
| Net Torque | 7.6 ft-lbs. |
| Shaft Output | Horizontal |
| Shaft Keyway | 0.25 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) | 5/16-24 |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Crankshaft | Q-type |
| PTO Height | 4.17 in |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron |
| Compression Ratio | 9:1 |
| Cooling System | Air cooled |
| Bore | 2.7 in |
| Stroke | 1.8 in |
| Air Cleaner Type | Cyclone |
| Fuel Tank | Yes |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 3.3 qt |
| Fuel Filter | Fuel tank filler neck strainer |
| Oil Capacity | 0.59 qt |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Centrifugal mechanical |
| Carburetor | Float, ier vent |
| Throttle Control | Remote (cable) |
| Choke Control | Manual |
| Max. RPM | 3,600 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Bolt Circle | 3.625 in |
| Mounting Base Length | 6.375 in |
| Mounting Base Width | 3.15 to 3.34 in |
| Dimensions L x W x H (in.) | 12 x 13.37 x 12.5 in |
Related products
Horizontal Engines

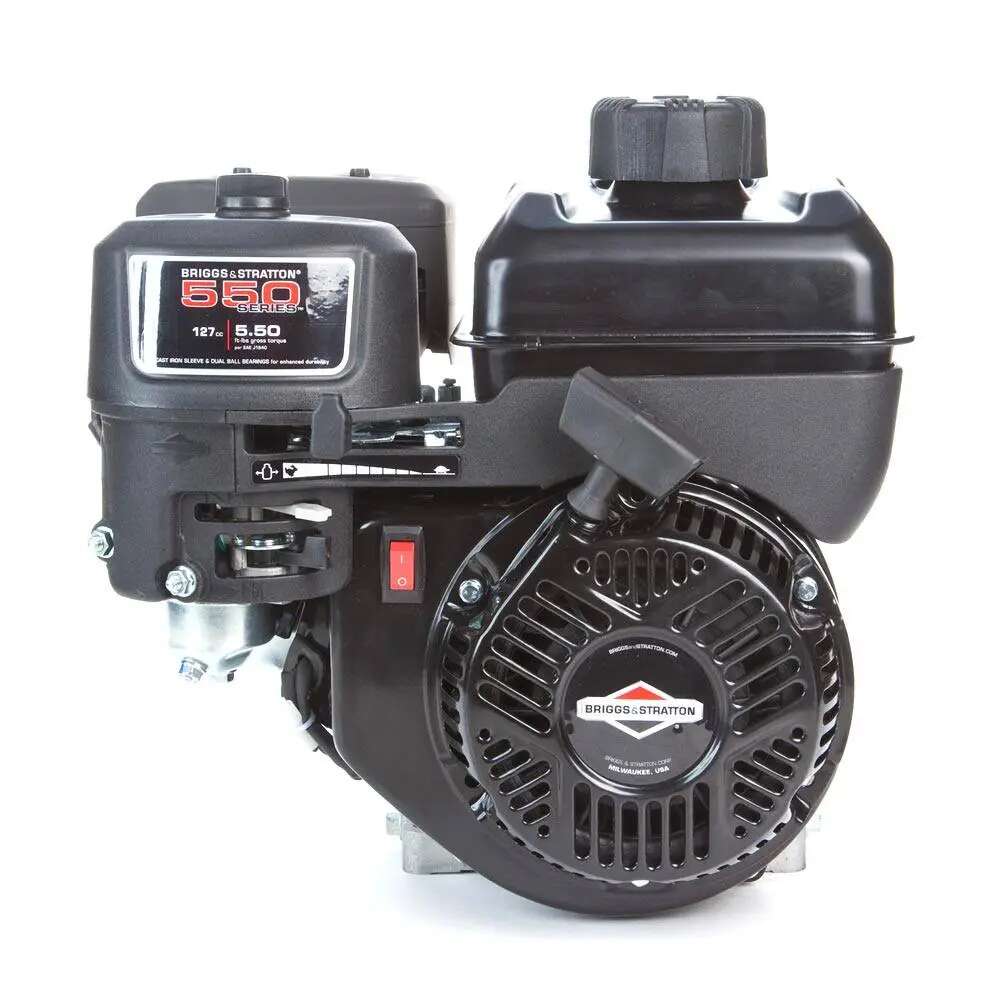

Briggs Stratton 83132 1040 F1 550 5.5 Gross torque 127cc OHV Engine
