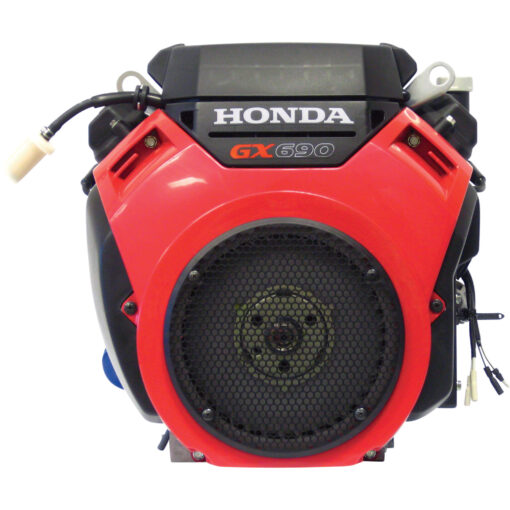

Honda VTwin OHV Engine with Electric Start 688cc GX Series Model GX690RHTDW

Name: Honda VTwin OHV Engine with Electric Start 688cc GX Series Model GX690RHTDW
SKU: 81388632
Availability: InStock

$960.00

Add to wishlist

SKU: 81388632 Category: Horizontal Engines

Description

Honda VTwin OHV Engine with Electric Start 688cc GX Series Model GX690RHTDW

Product Summary

The Honda 688cc GX Series V-Twin Engine is designed to offer higher horsepower, improved adaptability, quiet operation and greater fuel economy. Meets EPA and CARB emission levels standards. This engine is ideal for construction/industrial equipment, pressure washers, commercial lawn and garden equipment, tillers/cultivators, generators, ag equipment, small vehicles, water pumps and forestry equipment.n

Key Specs

Item#	13597
Brand	Honda Engines
Manufacturer’s Warranty	3 year limited warranty
Ship Weight	110.0 lbs
Engine Displacement	688 cc
Engine Type	GX Series OHV V-Twin
Net Power Output	22.1 HP
Start Type	Electric
Shaft Diameter	1 1/8 in
Shaft Length	2.9 in
Net Torque	35.6 ft-lbs.
Shaft Output	Horizontal
Shaft Keyway	0.25 in
Shaft End Tapped (Diameter (in.)/Threads per inch)	7/16-20, UNF2B
Shaft Rotation (From PTO Shaft Side)	Counterclockwise
Crankshaft	T-type
PTO Height	5.25 in
Bearing Type	Ball
Cylinders (qty.)	2
Cylinder Bore	Integrated
Compression Ratio	9.3:1
Cooling System	Air cooled
Air Cleaner Type	Dual element

Fuel Tank	No
Fuel Type	Gasoline
Fuel Filter	Fuel strainer
Oil Capacity	2.1 qt
Low Oil Alert	No
Low Oil Shutdown	No
Lubrication System	Forced lubrication
Ignition System	Electrical, digital CDI w/variable ignition timing
Governor System	Mechanical
Carburetor	Horizontal, two-barrel butterfly valve, internal vent
Throttle Control	Remote
Choke Control	Remote
Max. RPM	3,600
Charging System Amps	20
Muffler Included	No
Auto Compression Release	Yes
CARB Approval	No
Bolt Circle	5, 6.5, 7.75 in
Mounting Base Length	7.68 in
Mounting Base Width	3.39 to 4.65 in
Dimensions L x W x H (in.)	15.9 x 16.1 x 17.2 in
