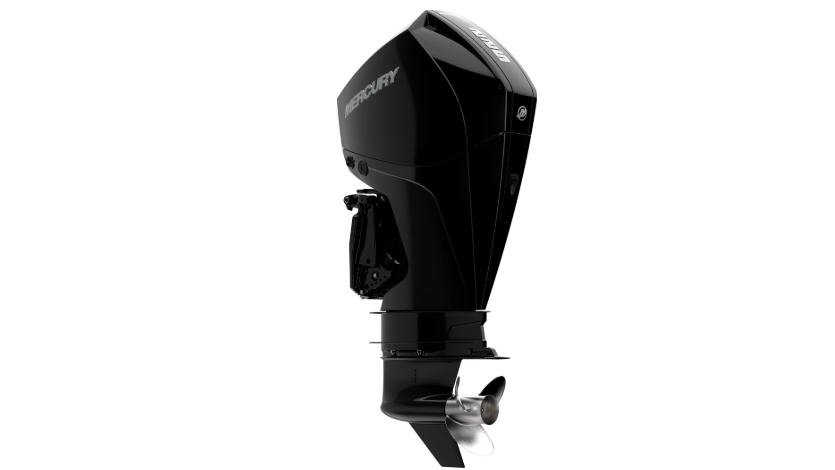

Name: Mercury 225CXL FourStroke Outboard Motor
SKU: 2316
Availability: InStock

Mercury 225CXL FourStroke Outboard Motor

$25,425.00

2022 Mercury 225CXL FourStroke^® DTS

Go with 5 Years Factory Backed Limited Coverage!

Purchase this Mercury outboard model and get a total of 5 years of Mercury factory-backed limited coverage! In addition to the standard 3-year warranty, you will also receive a 2-year Mercury Product Protection Gold plan!

Horsepower: 225
Engine type: V6
Displacement (CID/CC): 209 CID
Displacement (L): 3.4
Cylinder Configuration: V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Bore and stroke: 3.6 in x 3.4 in / 92 mm x 86 mm
Full throttle RPM: 5200-6000
Shaft length: 25 “
Gearcase ratio: 1.85:1
Alternator amp / Watt: 85-amp (1071 Watt) with Idle Charge
Maximum Trim Range: 20° (-6° to 14°)
Maximum Tilt Range: 73° (-6° to 67°)
Dry weight: 475 (Lightest model available) lbs

Mid Section: Conventional MidSection
Air induction: Performance-Tuned Long-Ruer Intake Manifold
Engine protection operator warning system: SmartCraft Engine Guardian
Compatible with SmartCraft digital technology (DTS ): Yes
Starting: Electric Start with SmartStart Protection
Controls: Digital Throttle & Shift (DTS) (sold separately)
Steering: Hydraulic (optional), Power (optional), Joystick Piloting for Outboards Power (optional)
Fuel induction system: Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
CARB star rating: 3
Ignition: SmartCraft PCM 112 Digital Inductive
Lubrication system: Integrated wet sump
Cooling system: Water-cooled with thermostat
Gear shift: F-N-R
Gearcase: 4.8″
Trim system: Power Trim & Tilt
Exhaust system: Through prop
Counter Rotation: Yes

Recommended fuel: Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil: NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)
Oil Capacity: 7.0 Quarts / 6.6 Liters
