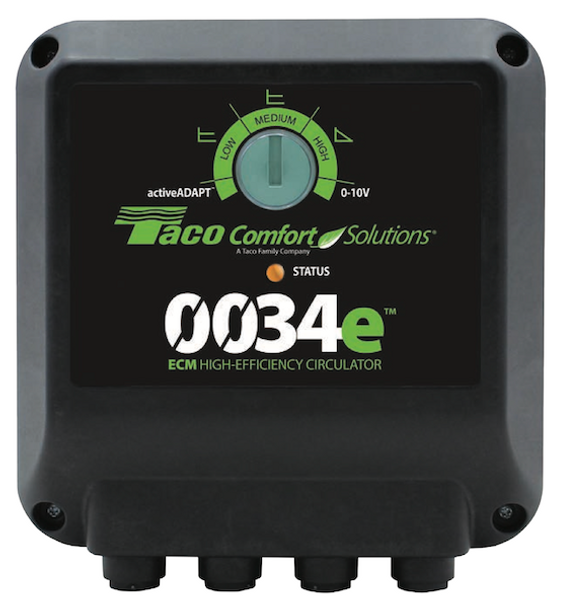

0034e-F2 Taco ECM High Efficiency Circulator Pump Analog. The 0034e and 0034ePlus are high-performance, variable speed, wet-rotor circulators with high-efficiency ECM permanent magnet technology. Their variable speed performance curves are equivalent to the Taco 009, 0010, 0011, 0012, 0012 3-Speed, 0013, 0013 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The ECM technology reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. The 0034e comes with an easy-to-use dial while the 0034ePlus has an intuitive digital user interface.
Features:
- Replaces all single speed and 3-speed circulators in its class
- Rotatable control cover to simplify installation
- BIO Barrier® protects the pump from system contaminants
- SureStart® automatic unblocking and air purging mode
- Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
- Nut-grabber feature on flanges for easier fit-up
- Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
- Double insulated
- Whisper quiet operation
|
Brand:
|
Taco
|
|
Model:
|
0034e-F2
|
|
Material:
|
Cast Iron
|
|
Max Pressure (PSI):
|
150 psi
|
|
Max Watts:
|
170W
|
|
Connection Size:
|
2 Bolt Flange
|
|
Flow Range (GPM):
|
0-50
|
|
Max Flow:
|
50
|
|
Head Range (FT):
|
0-34
|
|
Max Head (FT):
|
34
|
|
Maximum Water Temp:
|
230*F (110*C)
|
|
Minimum Water Temp:
|
14*F (-10*C)
|
|
Phase:
|
Single
|
|
RPM:
|
1590 – 4830
|
|
Hertz:
|
50/60 Hz
|
|
Voltage:
|
115V/208/230
|
