BRAND:
|
Taco
|
|
MODEL:
|
1634D
|
|
SERIES:
|
1600
|
|
MATERIAL:
|
Stainless Steel
|
|
MAX PRESSURE (PSI):
|
175 psi
|
|
HORSE POWER:
|
1 hp
|
|
CONNECTION SIZE:
|
2″
|
|
PHASE:
|
Three
|
|
RPM:
|
1750
|
|
CONNECTION:
|
Flanged
|
|
VOLTAGE:
|
208-230/460/60/3
|
|
HERTZ:
|
60
|
|
IMPELLER TRIM:
|
6.15″
|
|
PUMP TYPE:
|
Centrifugal
|
|
APPLICATION:
|
Potable Water
|

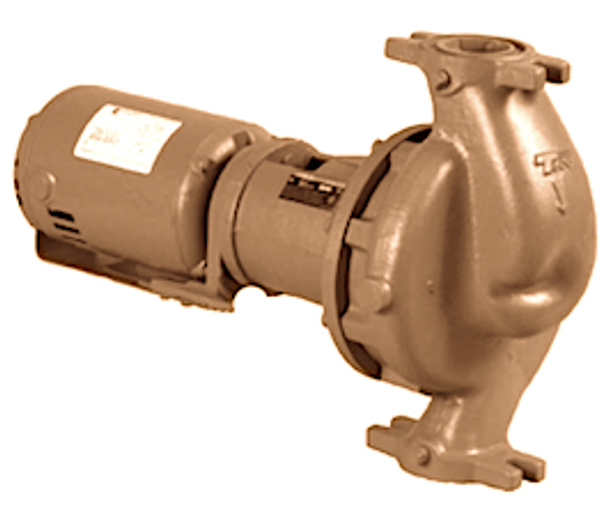

1634D Taco Stainless Steel Pump 1HP 3 PH 2″ Flange. Three Phase Motor, 1750 RPM, Standard Efficient, 200-230/460/60/3 ODP Motor. Stainless Steel Casing (non NSF), bracket, stainless steel impeller, alloy shaft with cupronickel shaft sleeve, ceramic seat, carbon rotor, ept rubber, 250 deg f, ball bearing cartridge with companion flanges.
Taco 1600 Series In-Line Pumps feature a replaceable, permanently-lubricated bearing cartridge. The exclusive 1600 cool-bearing cartridge design isolates the bearing from the effects of system temperatures to greatly extend bearing life. A standard bearing design also means that a single bearing cartridge can be used to service the entire line, making servicing a snap. Taco 1600 Series pumps are available in 15 models ranging in performance capacity from 10 GPM to 235 GPM with head capacities up to 68 ft.
